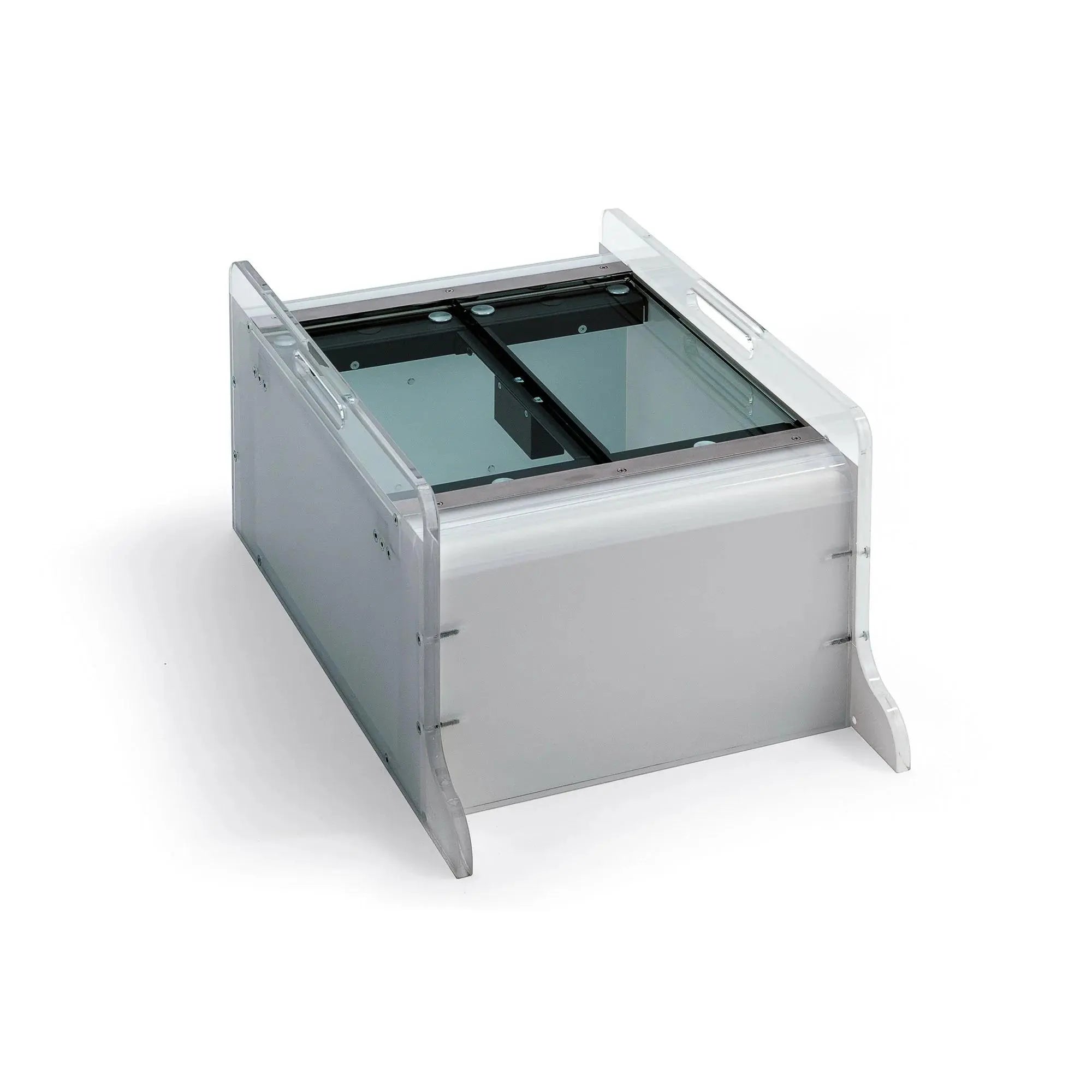

Stabilometric platform 3.0

Stabilometric, bipodal platform also with incorporated podoscope function, which can be directly connected to a computer. The GPS software makes it possible to position the six force sensors on predefined points under each foot and this operation not only simplifies the preliminary steps before the test, but it completely eliminates any necessary positioning of the patient on the platform.

This virtual movement of the force sensors ensures that measurements are repeated even at later stages. It is also used to measure the location of the patient's barycenter projection on the ground and the movements around it.

Main Features :
• Image resolution: FHD
• Sampling frequency: adjustable 1 ÷ 100 samples / s
• Primary power supply: 100 ÷ 240 V ~ - 50-60 Hz 400-200 mA
• Electrical outlet: ITA / UK
• Power supply: non-removable (included)
• Lighting: white LEDs
• Connection: USB 2.0
• Carrying handles: integrated into the frame
• Feet: adjustable for leveling (integrated bulley level)

Dimensions:
68 x 43.5 x 33.5 cm

Platform dimensions:
40 x 40 cm, divided in two

Weight:
31kg
Maximum load: 180 kg
